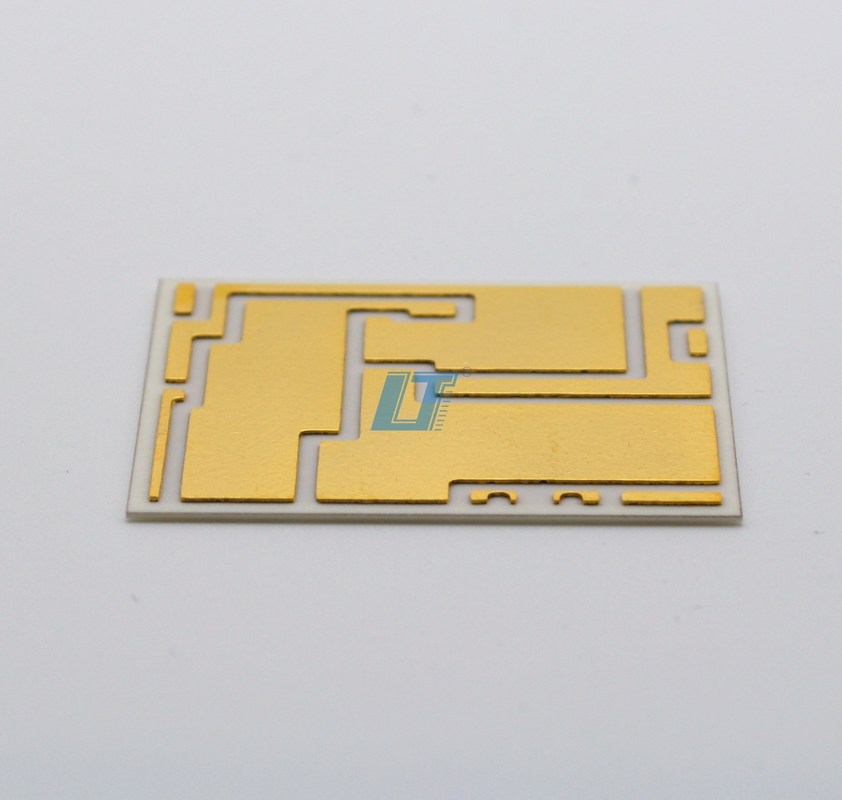

Thickness 0.1mm to 3.0mm Ceramic Board with Copper Clad Laminate Copper Thickness 18µm to 105µm Used in High Precision Electronic Components

ceramic PCB board with copper clad

high precision ceramic PCB laminate

thin ceramic board for electronics

Contacta con nosotros

Solicitar una cita

Thickness 0.1mm to 3.0mm Ceramic Board with Copper Clad Laminate Copper Thickness 18µm to 105µm Used in High Precision Electronic Components

Detalles del producto

Productname:

Ceramic PCB Board

Certificates:

ISO9001,ISO14001,IATF16949,UL

Testing Service:

100% E-Testing

Application:

High Power Electronics, LED Lighting, RF Modules

Substratetype:

Ceramic

Application Segment:

Auto,Industrial,Medical,DataCom、Comsumer

Layercount:

1-4 Layers

Thickness:

0.1mm - 3.0mm

Resaltar:

ceramic PCB board with copper clad

high precision ceramic PCB laminate

thin ceramic board for electronics

Condiciones de pago y envío

Productos relacionados

Medical Ceramic PCB Board Incorporating Ceramic Substrate and HASL Surface Finish Providing Excellent Thermal Management

Obtenga el mejor precio

RF Modules Ceramic PCB Board UL Certified Featuring Ceramic Thickfilm PCB Designed for Complex Electronic Circuit Integration

Obtenga el mejor precio

Ceramic Substrate Type Ceramic PCB Board UL Certified Including 100 Percent E Testing Service Ensuring and Durability in Electronics

Obtenga el mejor precio

Thickness 0.1mm to 3.0mm Ceramic Copper Clad PCB Featuring Size Range 2mm to 200mm Perfect for High Reliability Circuits

Obtenga el mejor precio

Contacta con nosotros

+001-512-7443871

sales@ltcircuit.com

Contacta ahora

Descripción del producto

Ceramic PCB Board with Copper Clad Laminate

Item No: R0028 - Advanced ceramic substrate solution with thickness range from 0.1mm to 3.0mm and copper thickness options from 18µm to 105µm, designed for high-precision electronic components.

Product Overview

This cutting-edge Ceramic PCB Board offers exceptional thermal conductivity and electrical performance, making it ideal for demanding high-power applications. With layer configurations from 1 to 4 layers and dielectric constant ranging from 7 to 9, it provides reliable performance for complex circuitry while maintaining compact form factors.

Key Features

Product Name: Ceramic PCB Board
Type: Ceramic Thickfilm PCB
Certifications: ISO9001, ISO14001, IATF16949, UL
Size Range: 2mm to 200mm
Thickness Range: 0.1mm to 3.0mm
Layer Count: 1 to 4 Layers
High-performance Ceramic Hybrid PCB technology
Supports 170W/m·K ALN Ceramic PCBs for superior thermal conductivity

Technical Specifications

Parameter	Specification
Product Name	Ceramic PCB Board
Item No	R0028
Substrate Type	Ceramic
PCB Thickness	1.6mm (Range: 0.1mm - 3.0mm)
Layer Count	1-4 Layers
Size	2mm ~ 200mm
Surface Finish	ENIG, HASL, Gold Plating
Testing Service	100% E-Testing
Certificates	ISO9001, ISO14001, IATF16949, UL

Applications

Ideal for high-performance applications across multiple industries including automotive (power modules, sensors), industrial automation, medical devices, data communication systems, and consumer electronics. Advanced technologies include DBC, DPC, LTCC, and HTCC for various application requirements.

Customization Options

Custom copper thickness from 18µm to 105µm and board thickness from 0.1mm to 3.0mm. Specializing in Al₂O₃ Ceramic PCBs for high power electronics, LED lighting, and RF modules.

Support & Services

Comprehensive technical support including design consultation, prototyping, testing services, and detailed documentation. All products undergo rigorous quality assurance with 100% E-Testing to ensure compliance with international standards.
